Female compression fittings give installers a straightforward, reliable method for connecting pipes and tubing. They help avoid the need for solder or welded joints. This overview covers the basics of female compression fittings, highlighting how the compression nut and ferrule ensure a tight seal. It also highlights their importance in both plumbing and HVAC applications.

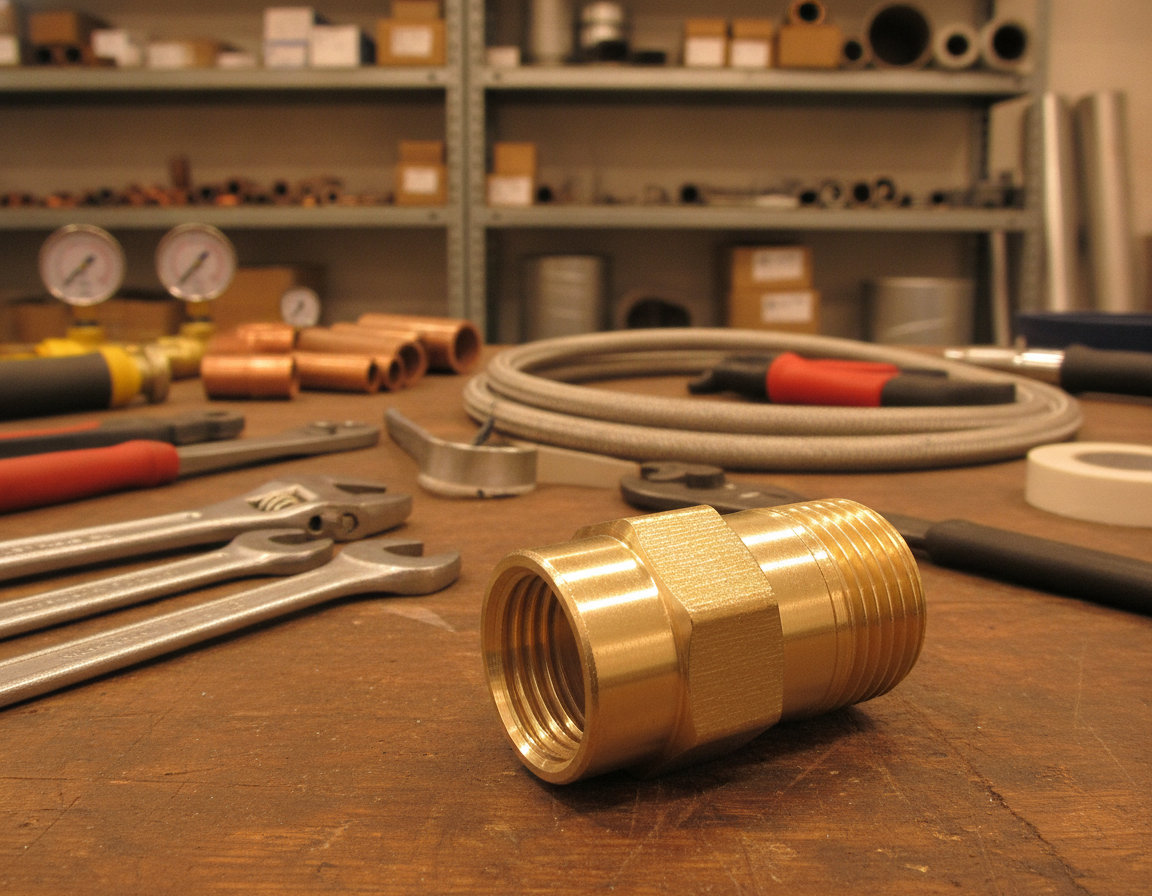

Female Compression Fitting
Using high-quality pipe fittings can significantly reduce energy losses. This also helps stop refrigerant or water leaks, which can negatively affect the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, require robust connections. Selecting the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is essential for long-term system performance.
For plumbing work, PEX or PVC with compression fittings are commonly selected for their ease of service and low heat exposure. On the other hand, refrigeration lines require fittings that can withstand thermal fatigue and keep a seal across a wide temperature range. InstallationPartsSupply.com and its product lines help meet these needs, offering common sizes and parts such as ferrules and compression nuts.
Important Highlights
- A Female Compression Fitting uses a compression-nut and ferrule assembly to seal without soldering.
- Selecting the right material—brass, copper, stainless, PVC, or PEX—prevents corrosion and failure.
- Well-matched fittings help cut energy loss and help stop refrigerant or water leaks in HVAC and plumbing systems.
- Compression fittings guide resources and suppliers like InstallationPartsSupply.com simplify part selection.
- Examine ferrules and tighten per manufacturer torque to ensure a long-lasting seal.
Understanding Compression Fittings And HVAC Vs Plumbing Applications
Compression fittings fasten pipes and tubing without solder or welding. They work well with copper, PEX, PVC, and stainless lines where heat or flame is best avoided. Many installers purchase parts from Installation Parts Supply to support consistent quality and fit.
What Compression Fittings Are And How They Seal
A compression fitting includes a nut and a ferrule olive pressed against the pipe by the fitting body. As the nut tightens, it squeezes the brass ferrule or sleeve, which presses into the outer pipe and forms a seal. This mechanical action demonstrates the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
How HVAC Fittings Differ From Plumbing Fittings
HVAC fittings must handle refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings are commonly selected for potable water, wastewater, and pressure from building systems. In HVAC vs plumbing fittings, selection depends on media, service temperature, and pressure ratings.
HVAC setups including split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbers commonly use PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Compression Fitting Materials: Brass, Copper, Stainless Steel, PVC, And PEX
Copper fittings deliver excellent thermal conductivity and corrosion resistance. Brass components, including brass ferrules, help resist wear and are common in many compression fittings. Stainless steel works well in corrosive or high-pressure environments.
PEX compression works well in domestic water lines because it withstands freeze-thaw cycles and is flexible. PVC is still a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material Type | Primary Use | Advantages | Limitations |
|---|---|---|---|
| Copper Fittings | Cooling lines and drinking-water systems | Thermally conductive, durable, and solderable | More expensive and vulnerable to mechanical damage |
| Brass Parts | Ferrules, nuts, and compression fittings | Machinable and resistant to corrosion | Possible galvanic issues with dissimilar metals |
| Stainless steel components | Harsh, high-pressure environments | Strong, durable, and resistant to corrosion | Higher cost and more difficult machining |
| PEX Pipe | Domestic water systems | Freeze-resistant with flexible handling | Requires compatible PEX compression fittings |
| PVC Material | Drainage and low-pressure cooling circuits | Low-cost and simple to install | Not for high temperature or pressure |
Why Choosing The Right Fitting Matters For Efficiency And Leaks
Selecting the proper fitting lowers leak risk and maintains system pressure. Across cooling circuits, a poor joint can release refrigerant and lower efficiency. Correctly matched fittings and seals cut maintenance and lower energy waste.
Choosing the proper ferrule olive and matching copper fittings or PEX compression hardware helps prevent galvanic corrosion and thermal fatigue. This method extends service life and keeps HVAC and plumbing systems running efficiently.
Female Compression Fitting Basics
A female compression fitting seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This joint allows for tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters allow quick disassembly for service or instrument changes.
Common Configurations And Definition
A common setup uses a female compression nut, a ferrule olive, and the fitting body. The nut screws onto the fitting body and compresses the ferrule to grip the tube. Many installations rely on unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Compatible Materials And Uses
Brass and copper are standard for refrigerant fittings and hot-water lines due to their ability to tolerate thermal cycles and resist deformation. Stainless steel suits high-pressure or corrosive environments. PVC and PEX suit condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Typical Uses In Plumbing, HVAC Refrigerant Lines, And Instrumentation
In standard plumbing work, female compression fittings link stops, valves, and supply lines without solder. Across HVAC service applications, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Serviceable gas and instrument lines frequently use compression parts for leak-tight, serviceable connections.
Female Vs Male Compression Fittings And Adapters
Female fittings accept a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter allows technicians interface service valves and gauges to the system. Choosing matched materials prevents galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Part | Common Material | Common Use | Service Note |
|---|---|---|---|
| Female Compression Nut | Machined brass | Water supply lines and valve fittings | Replace when rounded, cracked, or damaged |
| Compression ferrule | Brass/stainless steel | Creates compression seal on compatible tubing | Often not reusable after compression |
| Fitting body | Brass, stainless steel | Refrigerant fittings, instrumentation | Check pressure rating and media compatibility |
| 3 8 Male Compression Fitting | Brass or copper | Connecting small tubing to female ports | Verify seat and thread compatibility |
| Small valve adapter | Brass material | Service-gauge interfaces and manifold hoses | Use correct seals for refrigerant service |
| Installation Parts Supply inventory | Several material options | Source for replacement nuts, ferrules, and kits | Choose compatible ferrules and nuts for longer service life |
Fitting Types, Sizes, And Adapters For HVAC And Plumbing Work
This section delves into the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Installers use couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Choosing these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings plus compression unions help create the creation of removable joints for maintenance and testing. Straight couplings are useful for straight connections, while compression unions are better suited for components that need to be disconnected without disrupting the line. For small runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Adapters and elbows make it easier to handle tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting is used to connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs offer a wide range of these components, making possible quick access on job sites.
Picking the correct fitting size matters, depending on the tube’s outside diameter and the ferrule and nut set. Confirm that the female compression fitting size matches the tube OD to prevent leaks. When working with 3/8″ lines, verify ferrule compatibility and torque specifications. It’s also important to check the system’s maximum pressure and temperature ratings before making a final selection.
Parts like the Max Adaptor and 3/8 Valve Adapter help with connecting gauges, service ports, and small refrigerant lines. These adapters make easier the process of charging and diagnostics in HVAC systems. In HVAC, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Material choice balances between durability and corrosion resistance. Stainless steel is tough and corrosion-resistant, making it suitable for harsh environments. Brass and copper work well in refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX are suitable for low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental effect of fittings depends on leak prevention and recyclability. Well-sealed metal fittings can lower refrigerant emissions and can be recycled at the end of their life. Buying quality parts from reputable suppliers reduces failures and minimizes long-term environmental risk.
Below is a comparison to help choose between common options by application, pressure, temperature, and reusability.
| Connection Type | Common Use | Typical Max Pressure | Typical Temperature Range | Service Reuse |
|---|---|---|---|---|
| Brass coupling | Instrument lines, small water lines, and refrigeration uses | Up to 3,000 psi depending on specification | Minus 65°F to 250°F | Limited reuse if the ferrule remains intact |
| Compression union in brass or stainless | Disconnect points for maintenance | As high as 2,500 psi | Typical range from -65°F to 300°F | Good reuse potential for service access |
| 3/8 Compression Coupling | Instrumentation, refrigerant lines, and small plumbing runs | Depends on system; confirm pressure rating | Check material spec for HVAC use | Moderate, though often replaced during service |
| Small male compression fitting | Connection to service valves and gauges | Rated for refrigerant service when brass/stainless | Suitable for typical HVAC cycles | Reusable when not damaged |
| Specialty Max Adaptor | Special service coupling for gauges and valves | High rating for suitable service tools | Designed around HVAC service cycles | Reusable and made for repeated service |
| PEX/PVC fittings | Condensate drains and low-pressure water service | Low rating and unsuitable for refrigerant | Usually 32°F to 140°F | Sometimes reusable, but UV can reduce life |
When ordering, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Ensure that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Best Practices For Installation And Maintenance
Good installation begins with clean, square pipe ends and the right parts. When working with HVAC refrigerant lines, use copper and brass. On chilled water or condensate runs, PVC or PEX is best. Always follow manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
How to install compression fittings
1. First, cut and deburr the tube to a square face. 2. Then slide the nut and ferrule onto the pipe in that order. 3. For PEX or thin-wall plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Start by hand-tightening the nut, then use the two-wrench technique to finish the joint.
Tools and techniques
Use two wrenches to hold the fitting body and turn the nut to prevent tube twist. Follow tightening guidance from the fitting maker or Installation Parts Supply when available. Typical practice is to snug by hand, then add a limited number of wrench turns.
Using pipe inserts correctly
Pipe inserts should be used with soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not install inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common mistakes and ferrule removal
Prevent both loose and overly tight joints. Under-tightening may allow leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Most ferrules should be treated as single-use parts; plan to replace them when disassembling a joint.
How to remove a ferrule
Start by isolating the supply and releasing pressure. Grip the fitting body with one wrench while loosening the nut with a second. Remove the compression nut and pull out the ferrule. If the ferrule will not move, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
Installing a 3/8 Valve Adapter
For small lines like a 3/8″ valve connection, prepare the tubing the same way and follow the two-wrench technique. Many 3/8 Valve Adapter installation steps mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Routine inspection and maintenance
After bringing the system up to pressure, inspect joints for weeps and tighten slightly if needed. Make regular checks for corrosion and thermal fatigue, particularly on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Process Step | Action | Best-Practice Tip |
|---|---|---|
| Prepare | Square-cut, deburr, and clean the pipe | Use a quality tubing cutter and deburring tool |
| Component Assembly | Slide on the nut and ferrule, then insert into the fitting | Use inserts on PEX or PVC to hold tube shape |
| Final Tightening | Hand-tighten, then use two wrenches | Use the maker’s torque recommendation |
| Leak Test | Pressurize and check for leaks | Watch for slow weeps; re-torque slightly if safe |
| Ongoing Service | Inspect often and replace ferrules during disassembly | Stock spares from Installation Parts Supply for fast repairs |
Final Thoughts
Using the correct compression fitting matters for plumbing and HVAC work. The type of material, whether brass, copper, stainless steel, PVC, or PEX, must match the service type. This helps provide reliability and extends system life. Well-matched parts and sound installation help cut energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings offer a leak-free, solder-free solution. They are made up of a nut, ferrule, and body. For a dependable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These steps support long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For particular installations, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, be sure to match size and pressure ratings to the task. Reliable parts from trusted suppliers are important. Installation Parts Supply resources can assist in finding compatible fittings and adapters. Ongoing checks and good part selection support system efficiency and compliance.
In summary, dedicating time to material selection and correct assembly is vital. This ensures durable, leak-free connections. It allows for optimal performance, fewer repairs, and less environmental harm.
